[6,6]-Phenyl-C71 butyric acid methyl ester, also referred to as PC71BM, has increased optical absorption in the visible region than [60]PCBM. Hyper offers high purity [70]PCBM, over 10% PCE was achieved when mixed with PCE10 in our lab.

CAS#  609771-63-3
M. F. C82H14O2
Mol. Wt. 1031.98

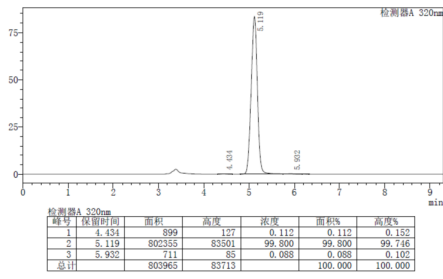

Purity >99%
Appearance  Black Powder
HOMO  -6.0 eV
LUMO  -3.9 eV

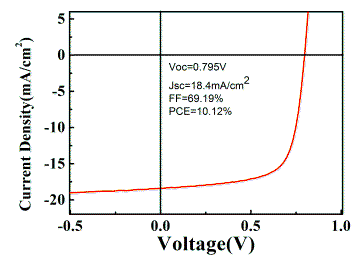

Device Structure: ITO/ZnO/PCE10: PC71BM(w/w =1: 1.3)/MoOx/Ag, with 3% DIO.

Disclaimer: The technical information provided in our website is accurate. However, HyperChemical, Inc. assume no liability  for the accuracy of this information. The test data provided here is from a typical batch and may vary over time and different batch. Also, the products provided by HyperChemical are not guaranteed to achieve specific results.
